Profession FPC 16mp Sony Imx258 Color Sensor Camera Module

Brand Name : SINCERE FIRST

Model Number : SF-OC8856-A10-F

Certification : CE, FCC, RoHS, REACH, ISO

Place of Origin : Guangdong , China

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Product Name : Mini MIPI IMX258 CMOS Camera Module

Sensor Type : IMX258 Image Sensor

Pixel : 16MP

Focus Range : 1500cm~Infinity

F.NO : 2.0

Sensor Size : 1/3.06 Inch

View Angle : 84.2°

Type : Sony Sensor Camera Module

Keyword : CMOS Camera Module

Focusing range : 20mm~0.6m

Contact Now

Profession FPC 16mp Sony Imx258 Color Sensor Camera Module

Profession FPC 16mp Sony Imx258 Color Sensor Camera Module

Product Description:

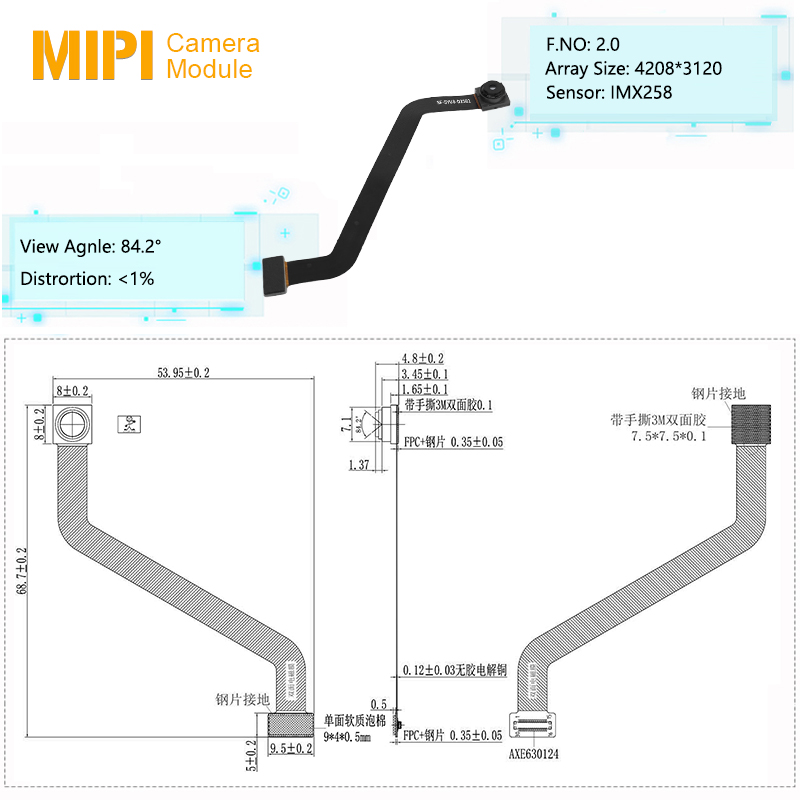

This is profession FPC 16MP Sony IMX258 color sensor camera module, integrates a large 1/3.06-inch optical format, delivering 16MP resolution (4208×3120) with crystal-clear output up to 4K@30fps and 1080p@60fps. Its F2.0 aperture significantly boosts photon capture efficiency, enabling exceptional low-light imaging. Precision-engineered optics ensure sharp focus from 1500cm to infinity with an expansive 84.2° field of view (FOV), while maintaining <1% distortion for true-to-life reproduction. The MIPI interface guarantees ultra-fast data transfer with robust stability. Encased in an ultra-compact 8mm×8mm COB package, it seamlessly integrates across diverse hardware platforms. Ideal for medical endoscopy, automotive CMS, live-streaming devices, and surveillance robotics.

Features:

  1. High-Fidelity Imaging:‌ Captures 13MP (4208×3120) resolution with 1.12μm pixels, resolving intricate textures for demanding visual tasks.
    2. Advanced Low-Light Clarity:‌ Incorporates Sony's Back-Illuminated Stacked (Exmor RS™) architecture paired with F2.0 aperture. This combination achieves superior quantum efficiency and lower noise than conventional sensors in darkness, producing exceptionally clean imagery.
    3. Ultra-Miniature Footprint:‌ 8mm×8mm COB packaging maximizes space efficiency, enabling deployment in highly constrained electronic assemblies

4. Optical Precision:‌ Engineered for sharp focus across 1500cm to infinity distances and an 84.2° FOV. Rigorous <1% distortion control preserves optical fidelity, ensuring accurate spatial representation.

Technical Parameters:

Product Name

Micro 16MP HD MIPI Camera Module

Sensor

IMX258

Piexl16MP

F.NO

2.0

Output Interface:

MIPI

Sensor Size

1/3.06 Inch

Keywords

CMOS Camera Module

Warranty

10 Years

Focusing Range

1500cm~Infinity

Brand Name

SINCEREFIRST

Applications:

Medical Endoscopy:‌ The miniature COB form factor (8×8mm) integrates into endoscopic tools, enabling ≤0.1mm tissue anomaly detection during minimally invasive procedures.
Automotive Camera Monitoring Systems (CMS):‌ Replaces traditional side mirrors, utilizing F2.0 aperture for reliable nighttime obstacle identification within 0.5-3m ranges during driving maneuvers.
Live Streaming Devices:‌ Serves as the primary imaging module in portable broadcast equipment. Leverages Phase Detection Auto Focus (PDAF) for instant (≤0.1s) subject tracking during dynamic events, with Exmor RS™ ensuring studio-quality low-light streams.
Surveillance Robotics:‌ Deploys on autonomous patrol robots performing 24/7 facility monitoring. Delivers stabilized 4K@30fps footage crucial for real-time threat assessment via low-latency transmission.
Profession FPC 16mp Sony Imx258 Color Sensor Camera Module

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.

4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
